Sodick / AP 250L

The best proposal with oil dielectric machining process.

High-precision wire EDM equipped with linear motors.

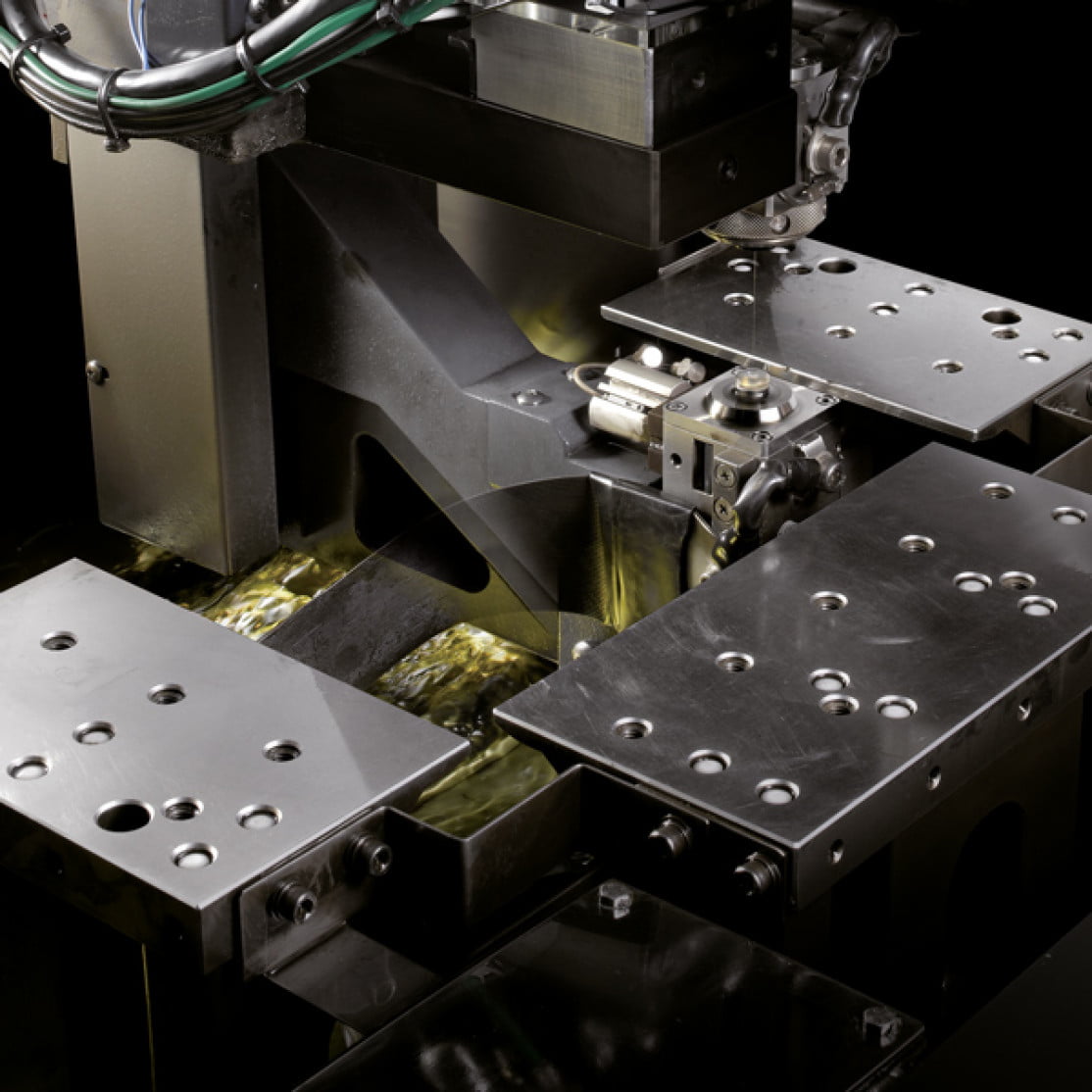

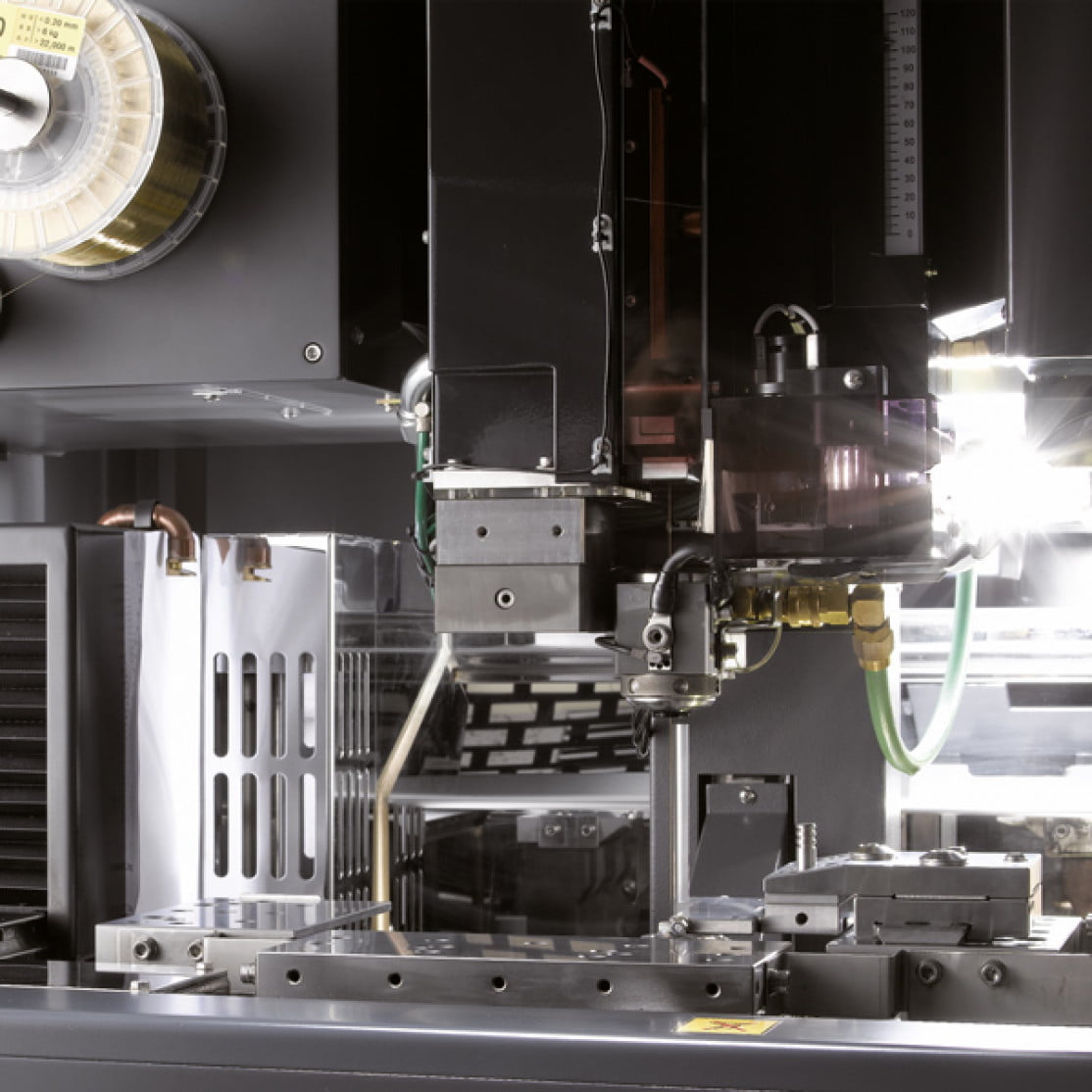

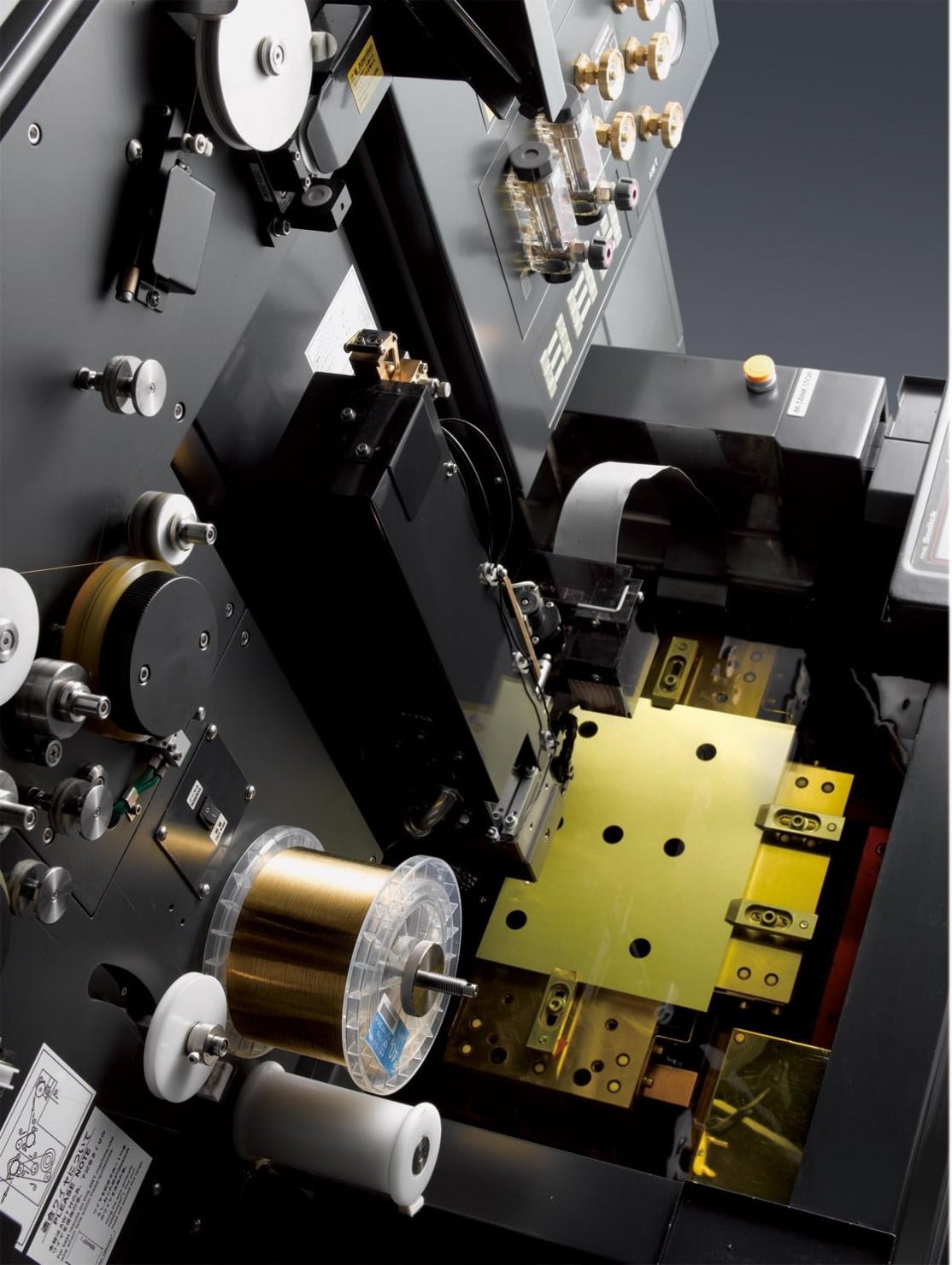

AP250L takes full advantage of the remarkable features of the structure: from the symmetry of the gantry design to the high quality of the Meehanite casting, to the rigidity and thermal stability. Keeping the power supply separate from the working tank prevents the heat generated from adversely affecting the machine’s accuracy. In addition, air and dielectric circulate through the machine structure so that thermal influences are kept under control.

The direct-drive linear motors manufactured by Sodick are vibration-free and feature unparalleled positioning and acceleration accuracy with no backlash. Stability, precision machining and ease of use ensure a high standard of performance that does not decrease over time and minimises maintenance. In addition, the precision of the motors has a 10-year warranty from the date of installation.

Specifiche tecniche

Technical Data
Max workpiece dimens. (WxDxH)400 x 270 x 100 mm
Max. workpiece weight80 kg
X/Y/Z axis travel250 x 150 x 120 mm
U/V axis travel35 x 35 mm
Wire diameterø 0.05 – ø 0.20 mm
Wire tension3 ~ 25N
Max wire feed speed250 mm/sec
External dimensions (WxDxH)1050 x 1310 x1600 mm
Dielectric fluidOil
Load capacity375 litres
