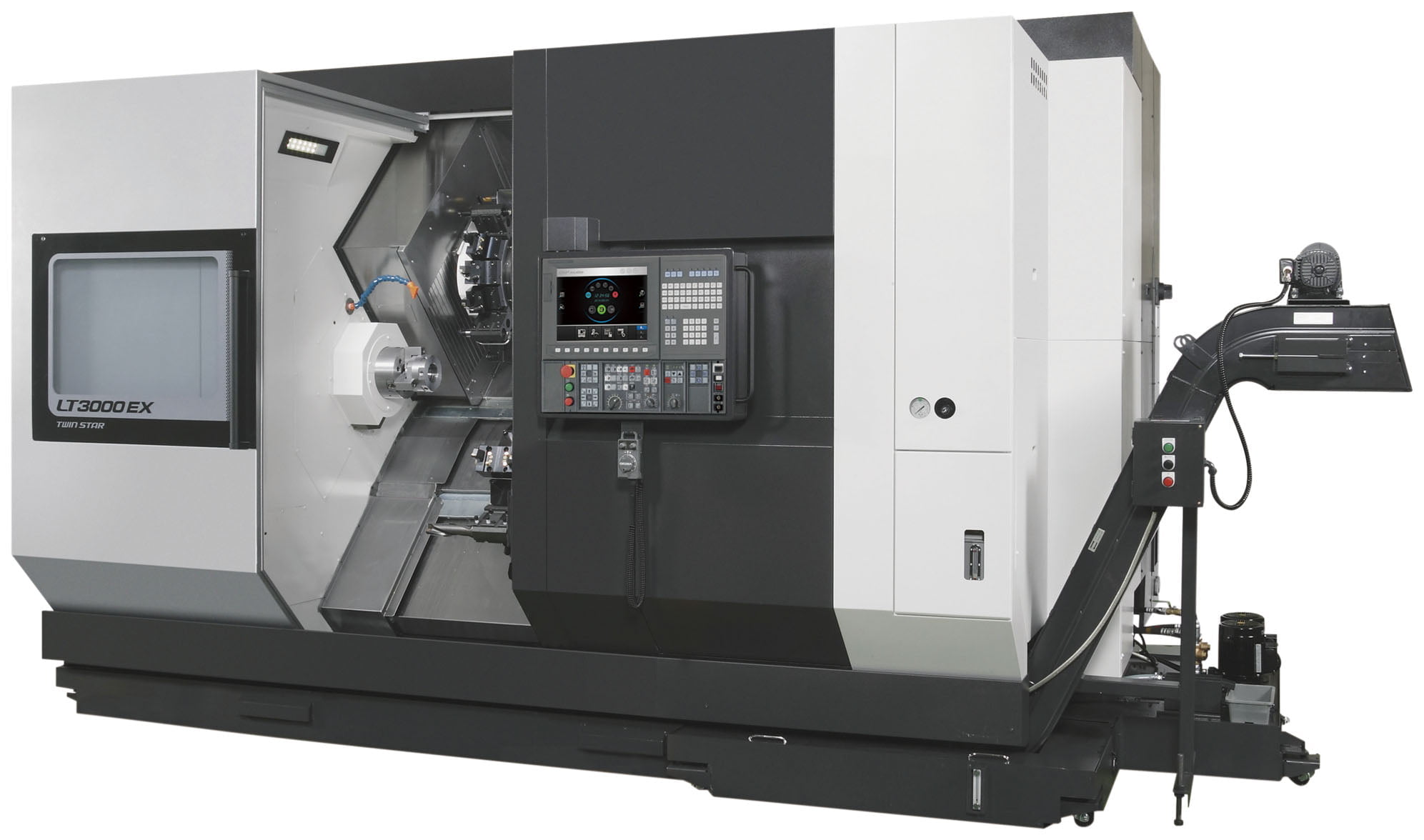

Okuma LT EX Series

Cost-effective complete machining for medium to large batches: The Okuma turning centres of the TWIN STAR LT EX series are characterised by their two identical, opposing operating spindles.

Equipped with C-axes and up to three revolvers with driven tool stations, the models of the series are particularly suitable for cost-effective complete machining and for automatic equipping with handling systems.

Specifiche tecniche

Technical Data LT 2000EX LT 3000EX
Max. Turning diameter mm 210 350
Max. Turning length mm 130 200
Main spindle speed min-1 6000 5000
Number of tools 16 [12]
Motor (VAC) kW 11/7,5 [22/15]
X-Z rapid travels m/min 30/40
Support surface mm 3.745 x 2.467 4.504 × 2.750
Options M/MY M/MY
