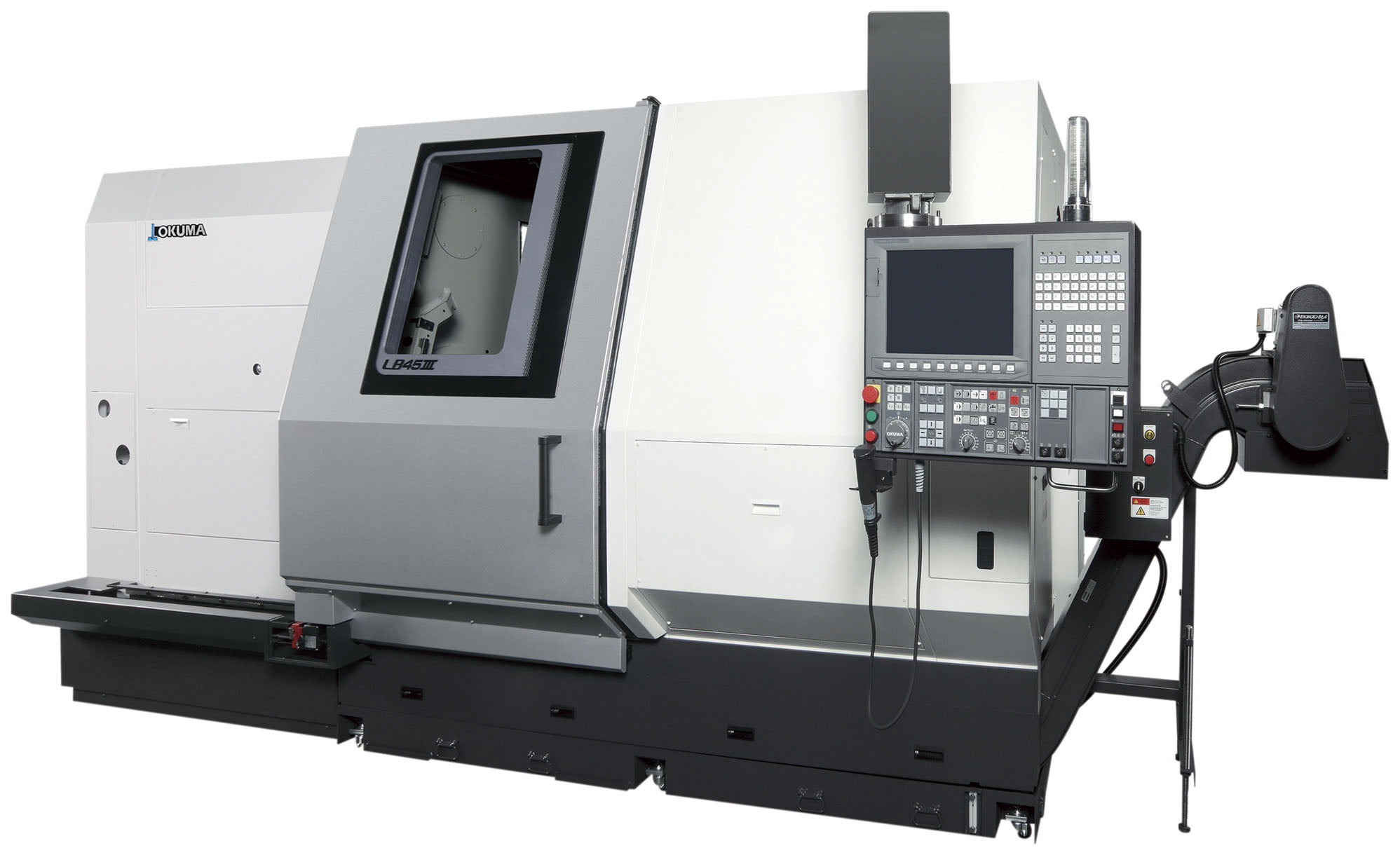

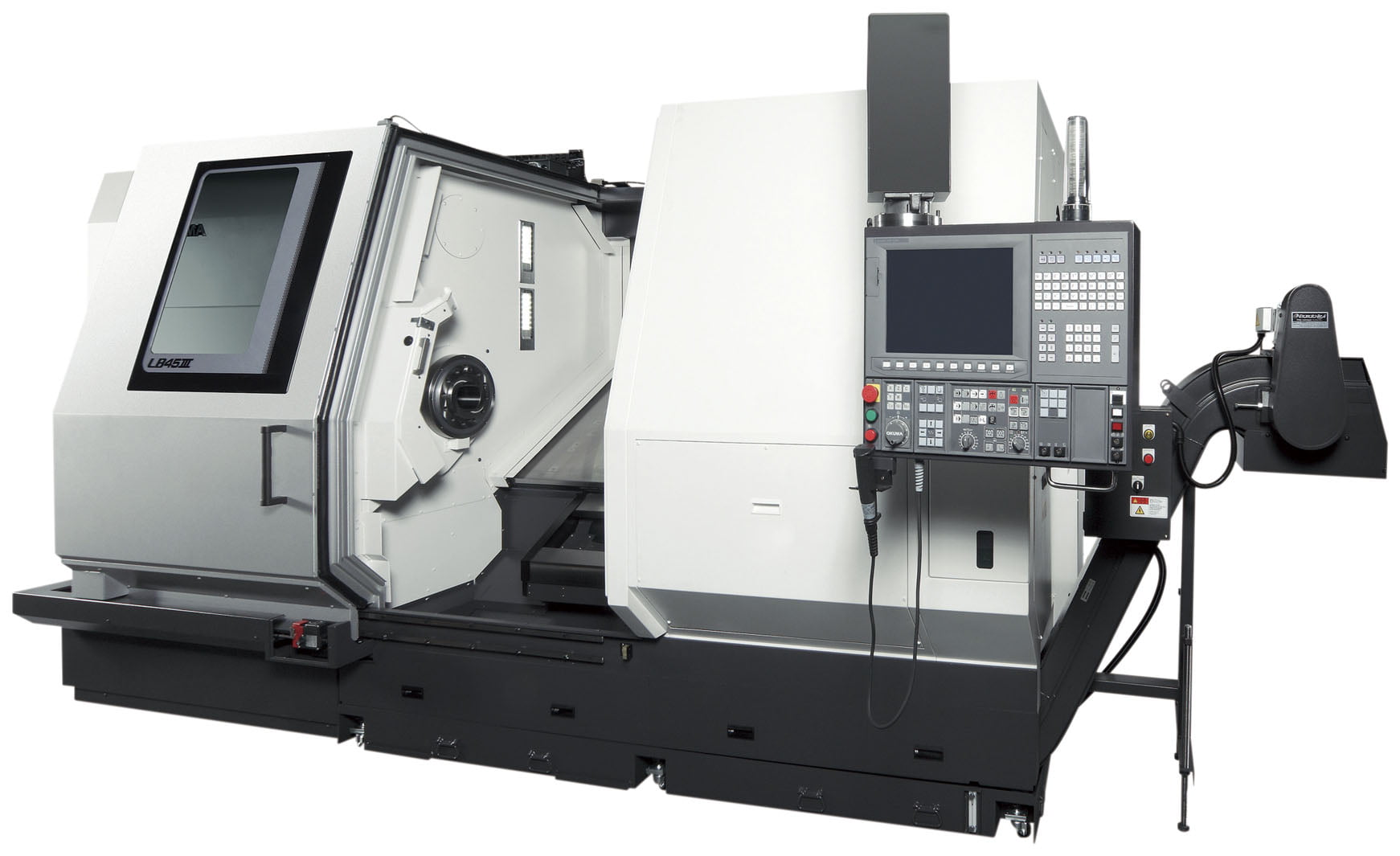

Okuma LB III Series

For long and heavy workpieces in very small to medium batches: ideal areas of application are the oil industry or mechanical engineering. With its stable tilted table design for 2-axis machining, the LBIII series guarantees the most efficient machining time.

The highest possible accuracy is guaranteed thanks to the heating/cooling cycle compensation via the Okuma Thermo-Friendly Concept. In terms of reliability and operating comfort, the factory-programmable OSP-P300L CNC continuous progression control can meet the most demanding requirements.

Specifiche tecniche

Technical Data LB 35III
LB 45III
Max. Turning diameter mm 460 660
Max. Turning length mm 600/850/1.500/2.000/3.000 500/1.000/2.000/3.000/4.000
Main spindle speed min-1 3200 2.800
Number of tools 12 12
Motor (PREX) kW 30/20 [37/30] 37/30 [45/37] (VAC)
X-Z rapid travels m/min 15/20 15/20
Support surface mm 3.995 × 2.563 4.240×2.685
Options M/MY M/MY
